Name: Turnstiles RS485 IP66 20W Face Recognition Thermometer
Brand: DOOR
Price: 1 USD

Brand Name : DOOR

Model Number : DR.MJ.3636

Certification : CE / IS09001

Place of Origin : shenzhen China

MOQ : 1 piece

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A

Supply Ability : 20000 piece per month

Delivery Time : 5-7 working days

Packaging Details : Carton box

Product name : Face Recognize Terminal

Working Temperature : -30℃ - +60℃

Working Humidity : 0～90% Relative humidity, non-condensing

Salt Spray Grade : Rp6 above

Antistatic : Touching±6KV，Air±8KV

Power : DC12V/3A

Riot Rating : IK07

Protect level : IP66

Device Power ratio : 20W(MAX)

Contact Now

2020 Most Popular Fast response turnstiles Face Recognition Terminal Non-contact Face Recognition Devices

Specifications:

Hardware
Processor	Sextuple processor + 2G memory + 32G flash
Operating system	Linux Operating system
Storage	Support TF card storage
Camera module	U21R
Sensor	1/2.8" Progressive Scan CMOS
Lens	6mm(optional)
Performance
Recognition height	1.2~2.2 meters,Angle can be adjusted
Recognition distance	0.5~5 meters,depends on lens
Face angle	30 degrees left and right, 30 degrees up and down
Recognition time	Less than 1 second
Function	Support 160,000 capture library, real-time capture, support 24,000 list library
Interface
Switch inputs	1ch switch input
Power	DV12V/3A
Network Interface	1x RJ45 10M / 100M Adaptive Ethernet port
Wiegand Interface	1ch Wiegand interface input/output
USB interface	1ch USB interface
Camera Data
Camera	Two cameras: 1x B/W camera ; 1x color camera
Effective pixels	2MP,1920*1080
Min Illumination	Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR	≥50db(AGC OFF)
WDR	≥120db
Video Coding	H.265 Main Profile /H.264 BP/MP/HP /MJPEG
Resolution	Main stream:50Hz: 25fps (1920×1080,1280×720) 60Hz: 30fps (1920×1080,1280×720)

	Sub stream:720576,1-25(30)fps/640480,1-25(30)fps 320*240,1-25(30)fps

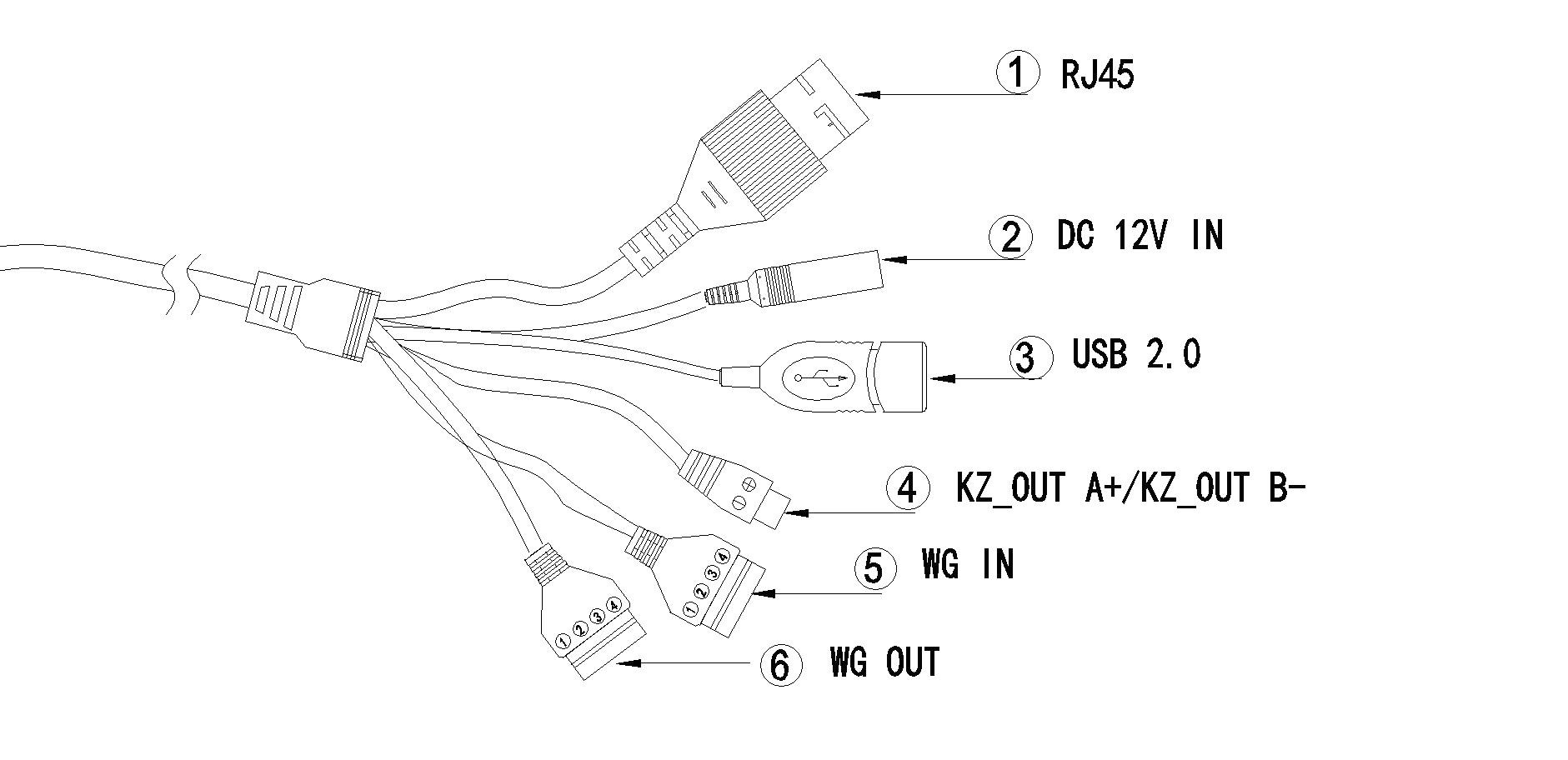

Interface Definition:

Turnstiles RS485 IP66 20W Face Recognition Thermometer

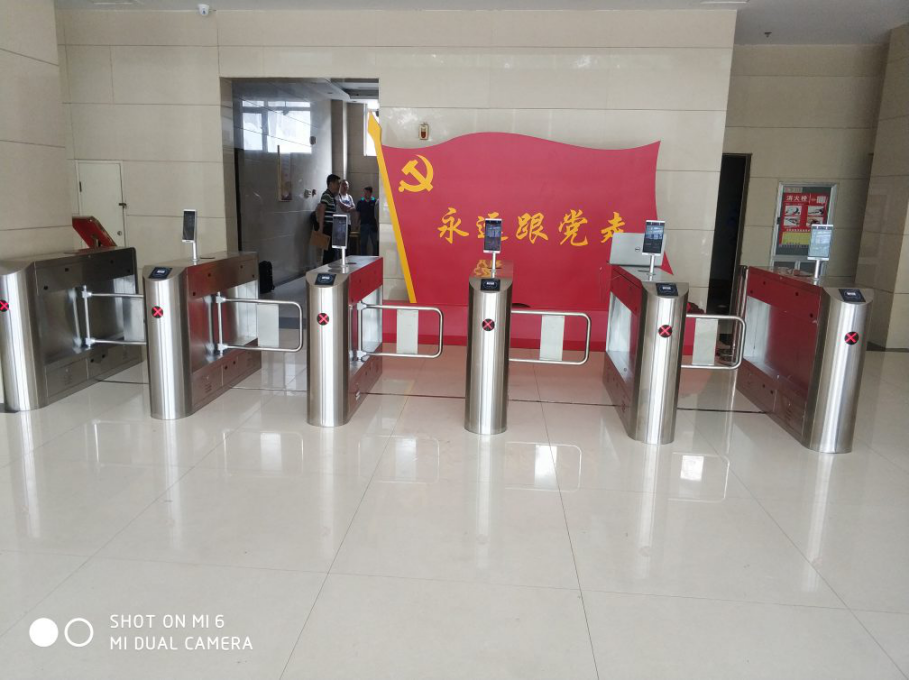

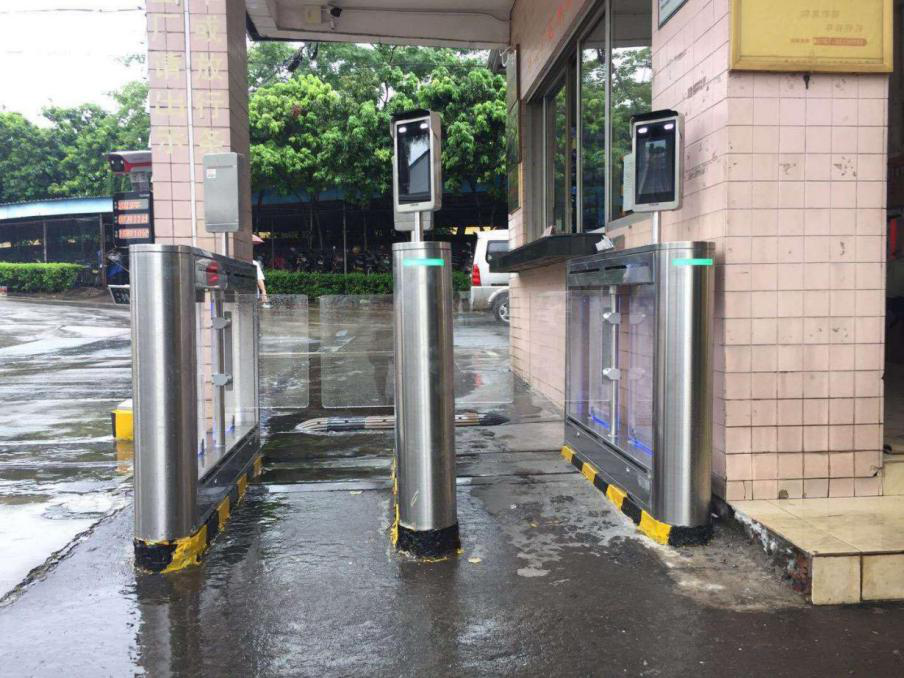

Application:
