Multifunction And High-Capacity 8 Inch Interface Face Recognition System
Product Features:
Break the limitation of the traditional access control verification, compare the personnel authority through non-contact
high-precision verification methods such as face recognition, improve the efficiency of entry and exit of personnel in the passage,
doorway and other places and verify the security, in addition to increase the remote temperature measurement function Improve
collection efficiency. The device collects face and temperature, face comparison, and matches the output signal of the whole process of
automation, which fully reflects the convenience of artificial intelligence in life and work. This system is mainly suitable for places such
as personnel gates (temperature measurement), smart gates (temperature measurement), and temperature verification by the Ministry of Public Security.
1. Support binocular live detection
2. Support human face tracking exposure in strong backlight environment
3. Unique face recognition algorithm, accurate face recognition, face recognition time is less than 0.5s
4. Built-in domestic CPU
5. Using LINUX operating system, the system is stable
6. Support local storage of TF card, continuous storage of pictures for 1 year, continuous storage of videos for
1 month or longer (related to the optional TF card capacity)
7. The average trouble-free running time of the host MTBF> 50000h
Specifications:
| Recognize height | 1.2~2.3 meter, angle Adjustable |
| Recognition distance | 0.3~1.5 meter, Variable view lens |
| Recognition time | ≤ 0.5S/person |
| Storage capacity | 160,000 snapshot records |
| Face capacity | 24000 faces |
| Screen brightness | ≥400cd/m2 |

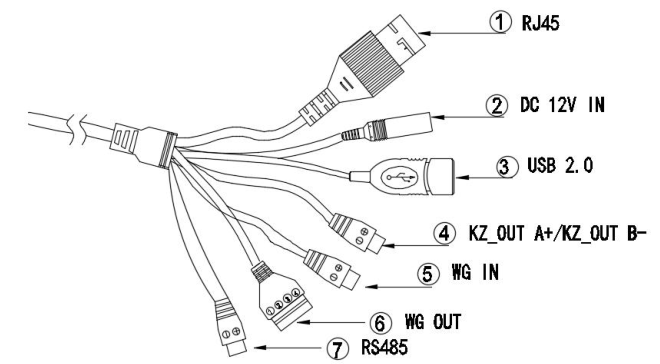

| Interface |
| Switch output | 1 switch output, other GPIO ports can be customized |
| Network Interface | 1 RJ4510M / 100M adaptive Ethernet port, customized Gigabit network port |
| Wiegand interface | 1 Wiegand input, 1 Wiegand output/ |
| USB interface | 1 USB interface as device |
| Communication Interface | 1 RS485 interface |
| Camera parameters |
| Camera | Binocular camera, visible light and near infrared, support live detection |
| Effective Pixels | 2.1 million effective pixels, 1920*1080 |
| Minimum illumination | Color 0.01Lux @ F1.2 (ICR); black and white 0.001Lux @ F1.2 (ICR) |
| Noise ratio | ≥50db(AGC OFF) |
| Wide dynamic | 120db,ISP algorithm partial face exposure |
| Video coding | H.265 Main Profile encoding / H.264 BP / MP / HP encoding / MJPEG encoding |
| Image Resolution | main stream | 50Hz: 25fps (1920×1080,1280×720) |
| | | 60Hz: 30fps (1920×1080,1280×720) |
| | Sub-stream | 720 * 576, 1-25 (30) frames / second / 640 * 480, 1-25 (30) frames / second |
| | | 320*240,1-25(30)frames/second |
Product detailes:
FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7. How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
